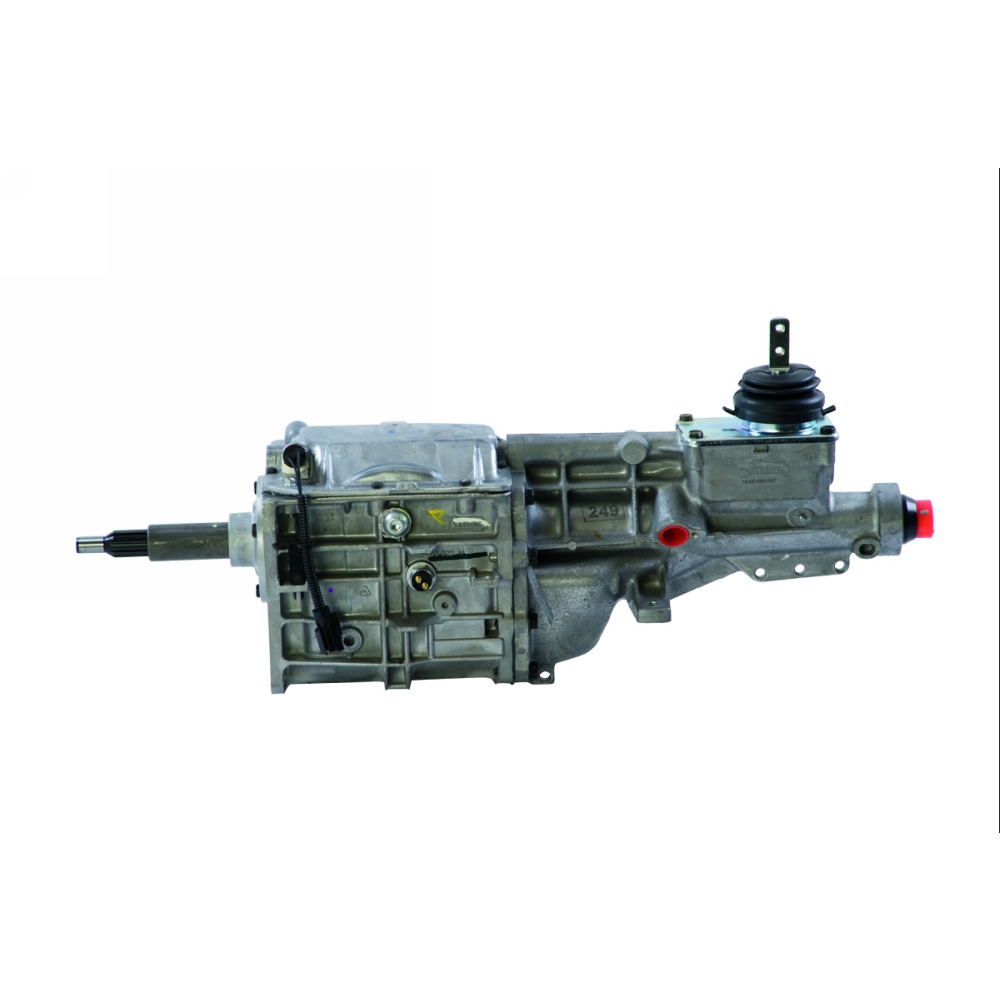

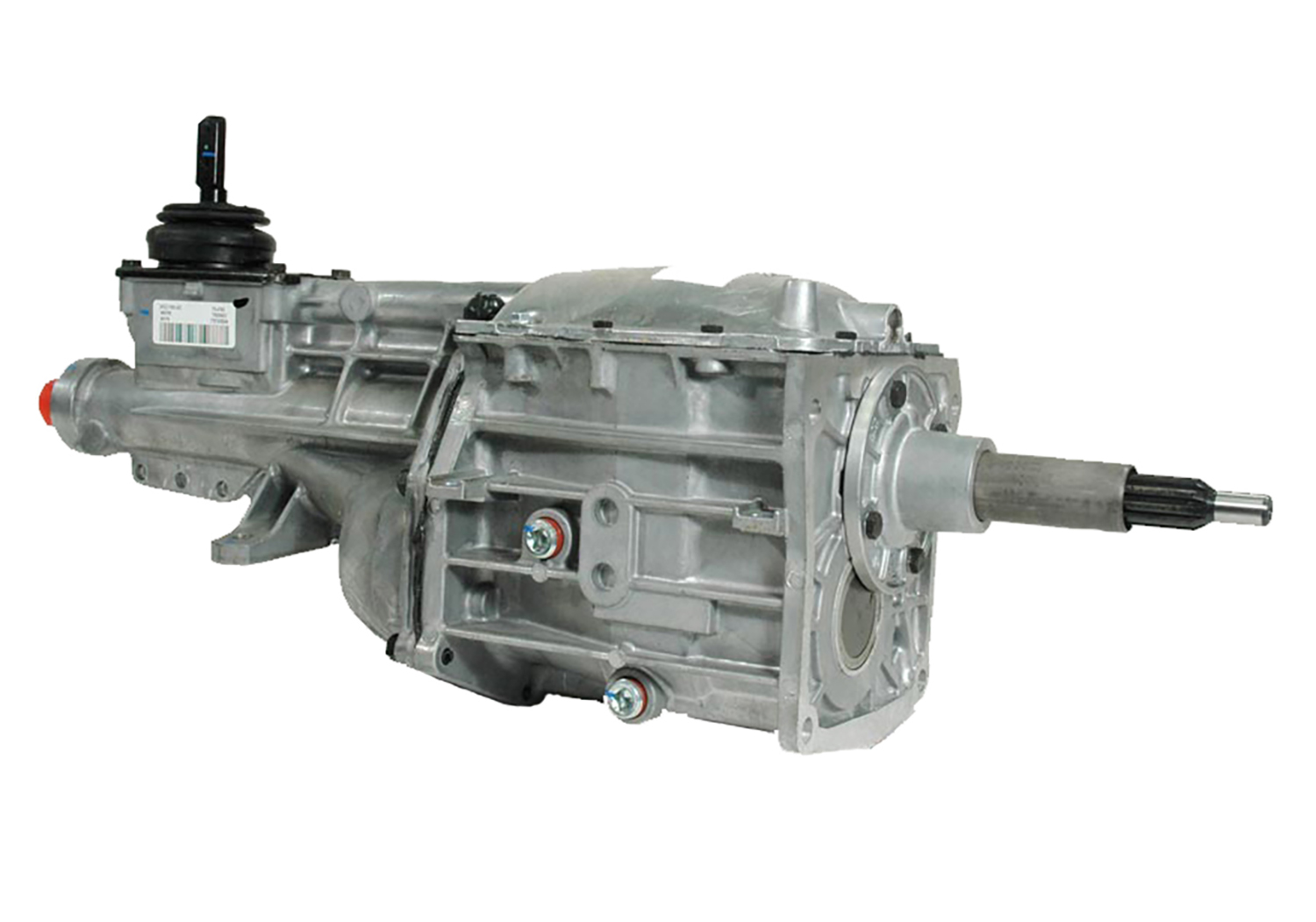

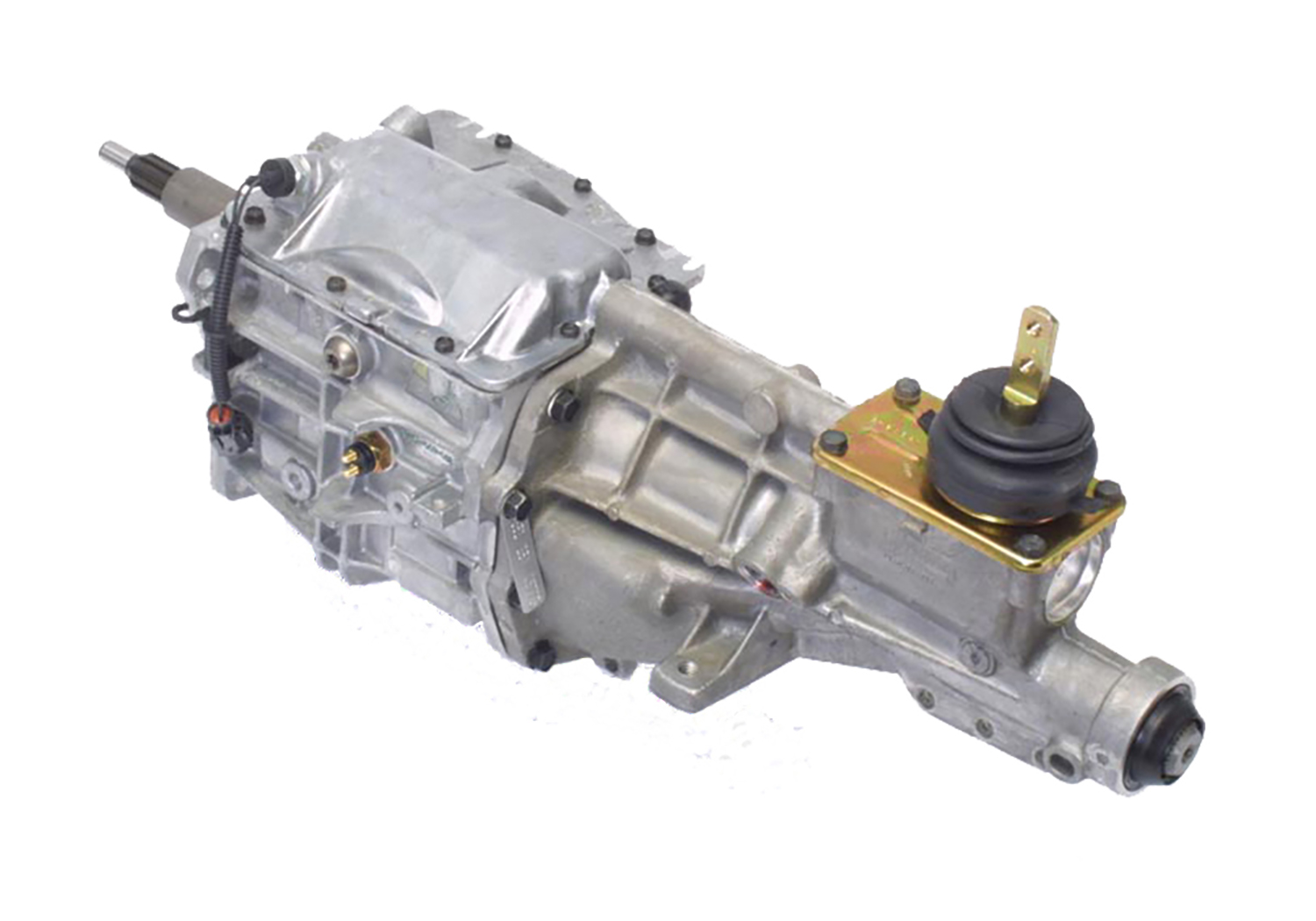

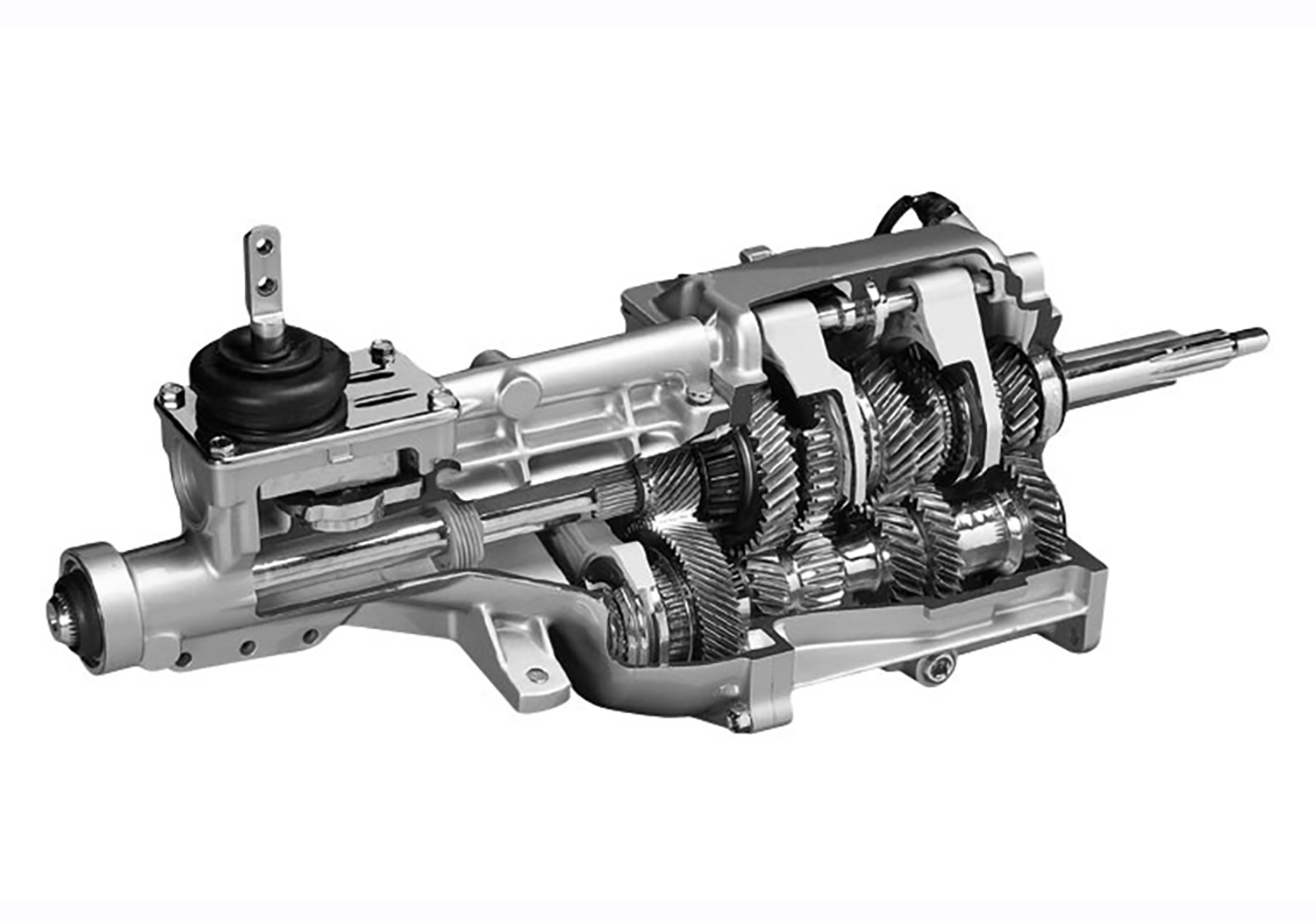

TREMEC UPGRADED SUPER-DUTY T-5 TRANSMISSION
M-7003-Z
Retail
$2,295.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
- 1979-1993 Mustang V8 only
- Heavy-duty "World Class" T-5 5-speed manual transmission with short throw shifter
- 300 lb-ft torque capacity
- Gear ratios: 1st 2.95; 2nd 1.94; 3rd 1.34; 4th 1.00; 5th 0.63
- Double moly 2nd speed, 3rd speed and countershaft cluster gears
- Carbon fiber 3-4 blocker rings
- Improved synchronizers and bearings
- 1-1/16" diameter 10 spline input shaft
- 28 spline output shaft
- 7 tooth speedometer drive gear
- Cobra style pocket bearing
- Steel input bearing retainer
- Transmission requires Mercon or Dexron III fluid
Part Type
D-Line: Manual Trans
Warranty Availability
Not Available
Package Dimensions
18.25" x 9.75" x 36.5"
Package Weight
83 lb(s)
UPC Code
756122700327
Country of Origin
Mexico
