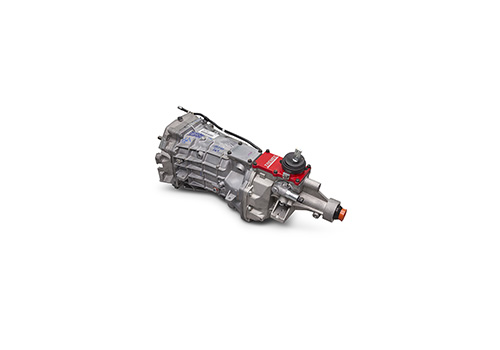

TREMEC 6-SPEED TRANSMISSION (2.66 1ST GEAR/26 SPLINE)
M-7003-M6266
Retail
$3,895.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
- Fits: SBF, 4.6L SOHC/DOHC and 5.0L Ti-VCT engines
- Can be used in 1999-2004 Mustangs and Cobras
- For SBF 302/351 use Quicktime bellhousing part # 8031, For modular 4.6L/5.0L/5.4L use Quicktime bellhousing part # 8080
- May require shorter driveshaft, modified crossmember/trans mount and other minor modifications
- 700 lbs./ft. torque capacity
- Gear ratios: 1st 2.66, 2nd 1.78, 3rd 1.30, 4th 1.00, 5th 0.80, and 6th 0.63
- Input shaft is 26 spline; output shaft is 31 spline
- Provision for both mechanical and electronic speedometer
- Mechanical speedometer drive gear has 7 teeth
- Electronic speedometer rotor has 12 positions
Part Type
D-Line: Manual Trans
Warranty Availability
Not Available
Package Dimensions
18.25" x 9.75" x 36.5"
Package Weight
162 lb(s)
UPC Code
756122224403
Country of Origin
Mexico
