9MM SPARK PLUG WIRE SETS - "FORD RACING"

9MM SPARK PLUG WIRE SETS - "FORD RACING"
9MM SPARK PLUG WIRE SETS - "FORD RACING"
9MM SPARK PLUG WIRE SETS - "FORD RACING"
M-12259-R301
Retail
$57.95
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
ATTENTION:
This part is intended as a replacement part for use only in the application(s) identified in the product description. Installation of this part in a vehicle for which it is not intended may violate U.S. and Canadian laws and regulations related to motor vehicle emissions.

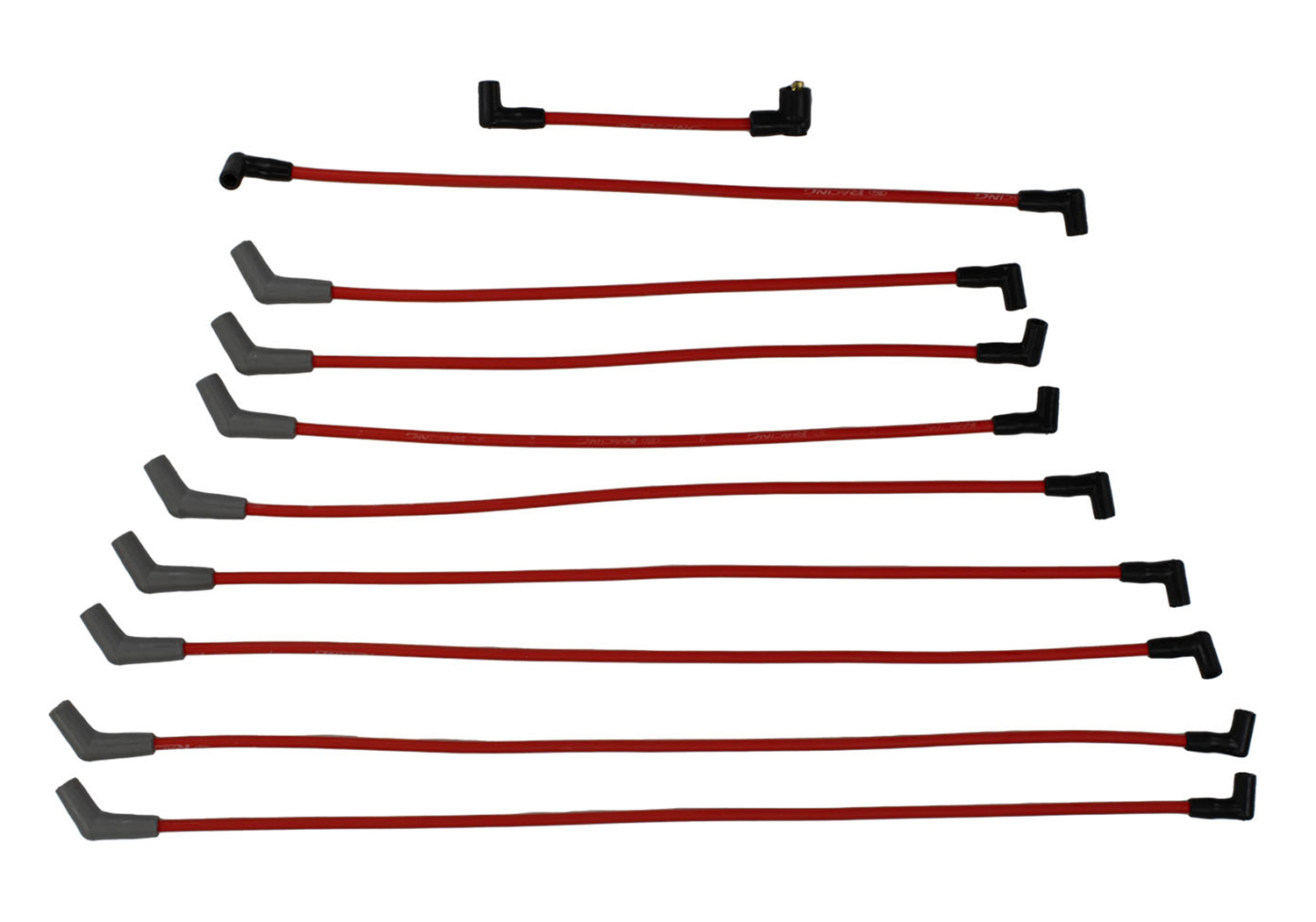

    9MM FORD RACING SPARK PLUG WIRE SETS

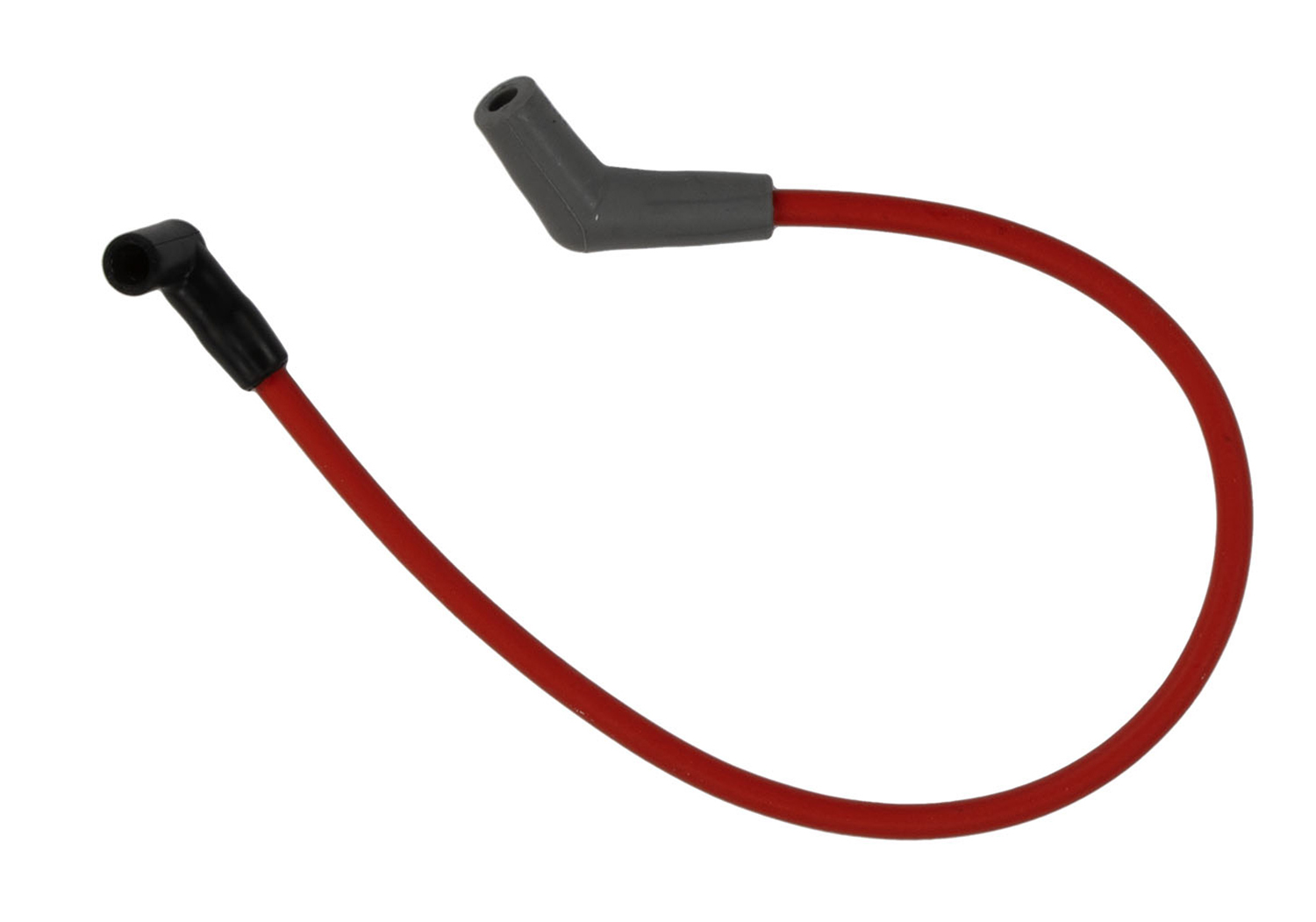

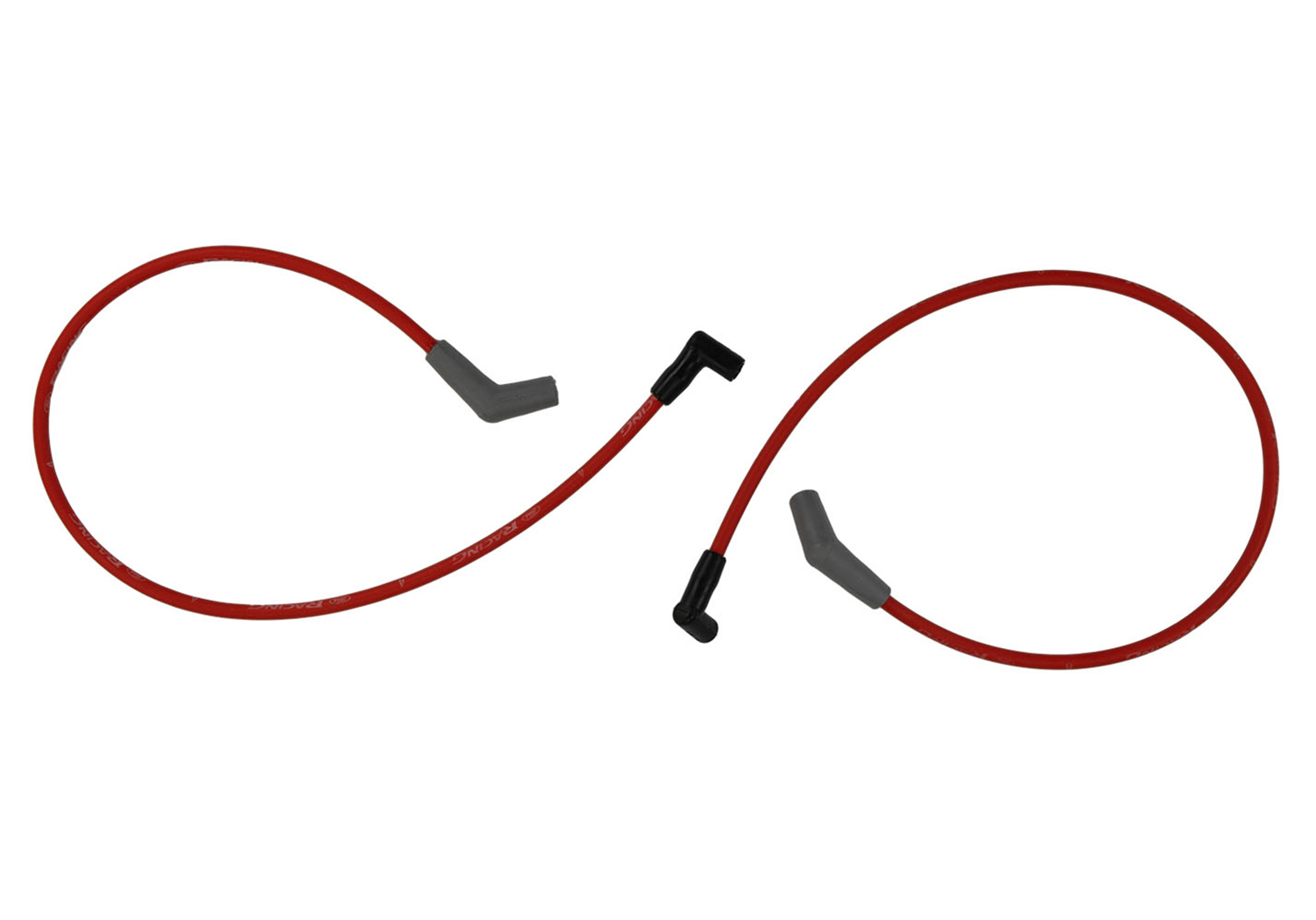

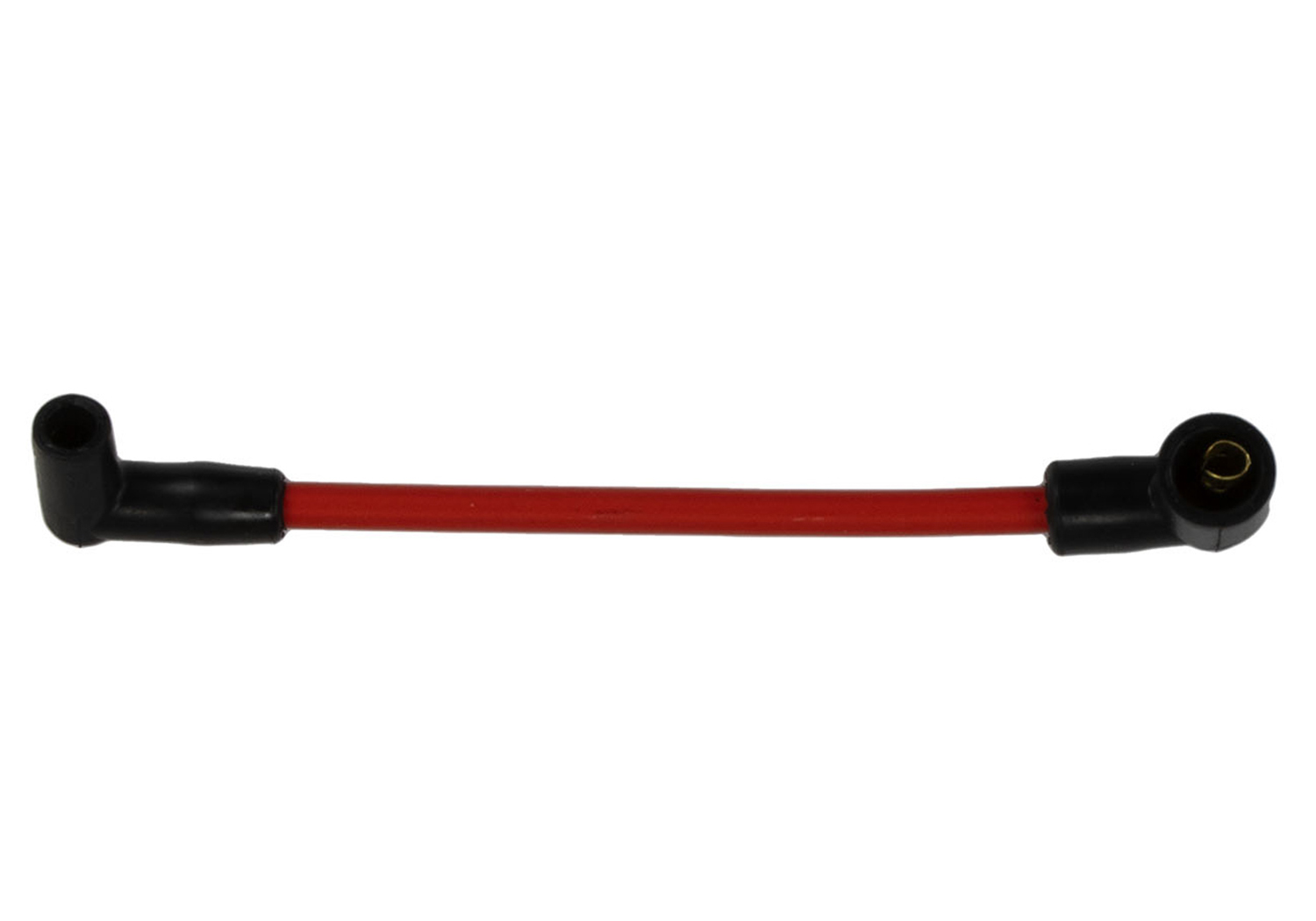

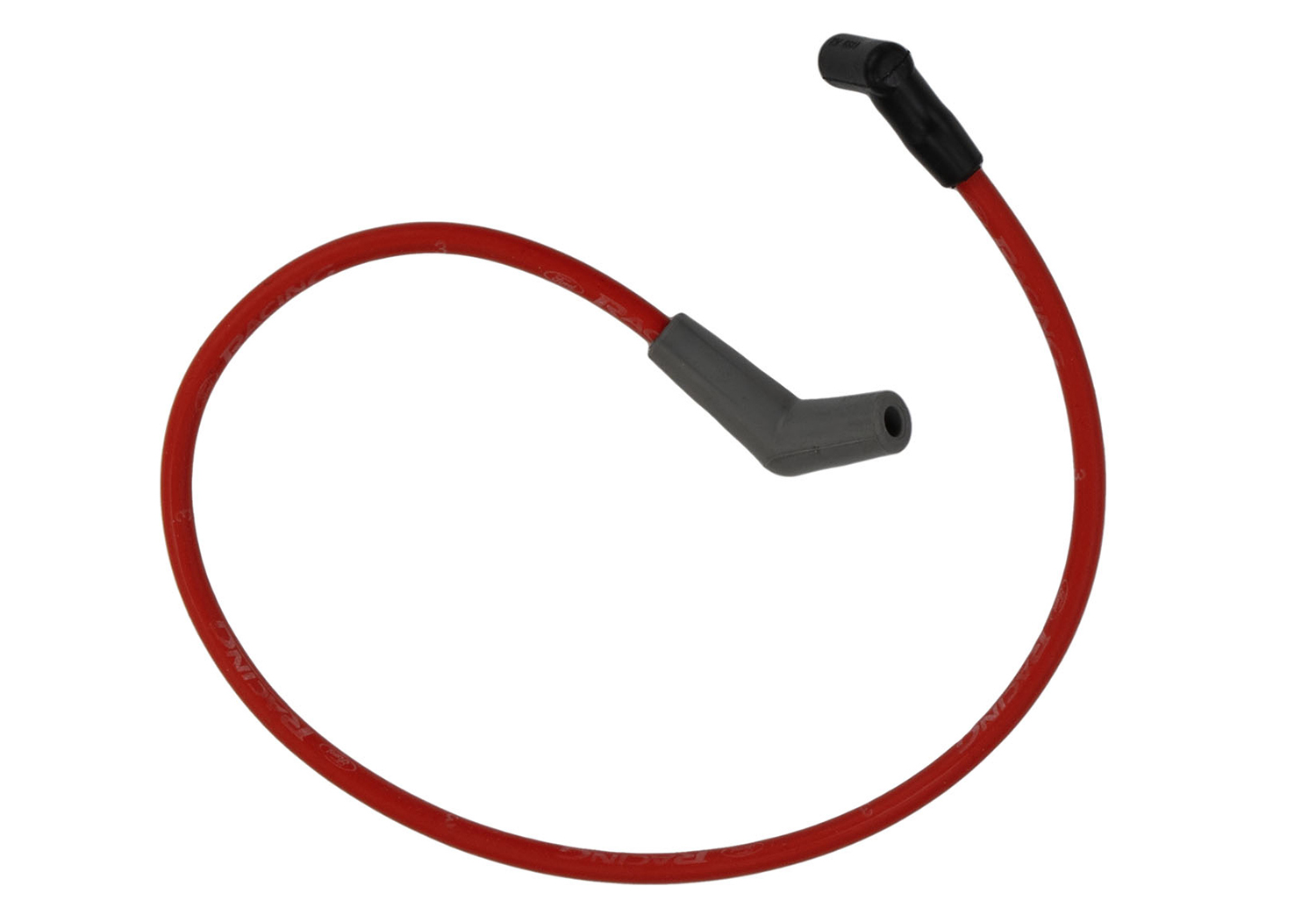

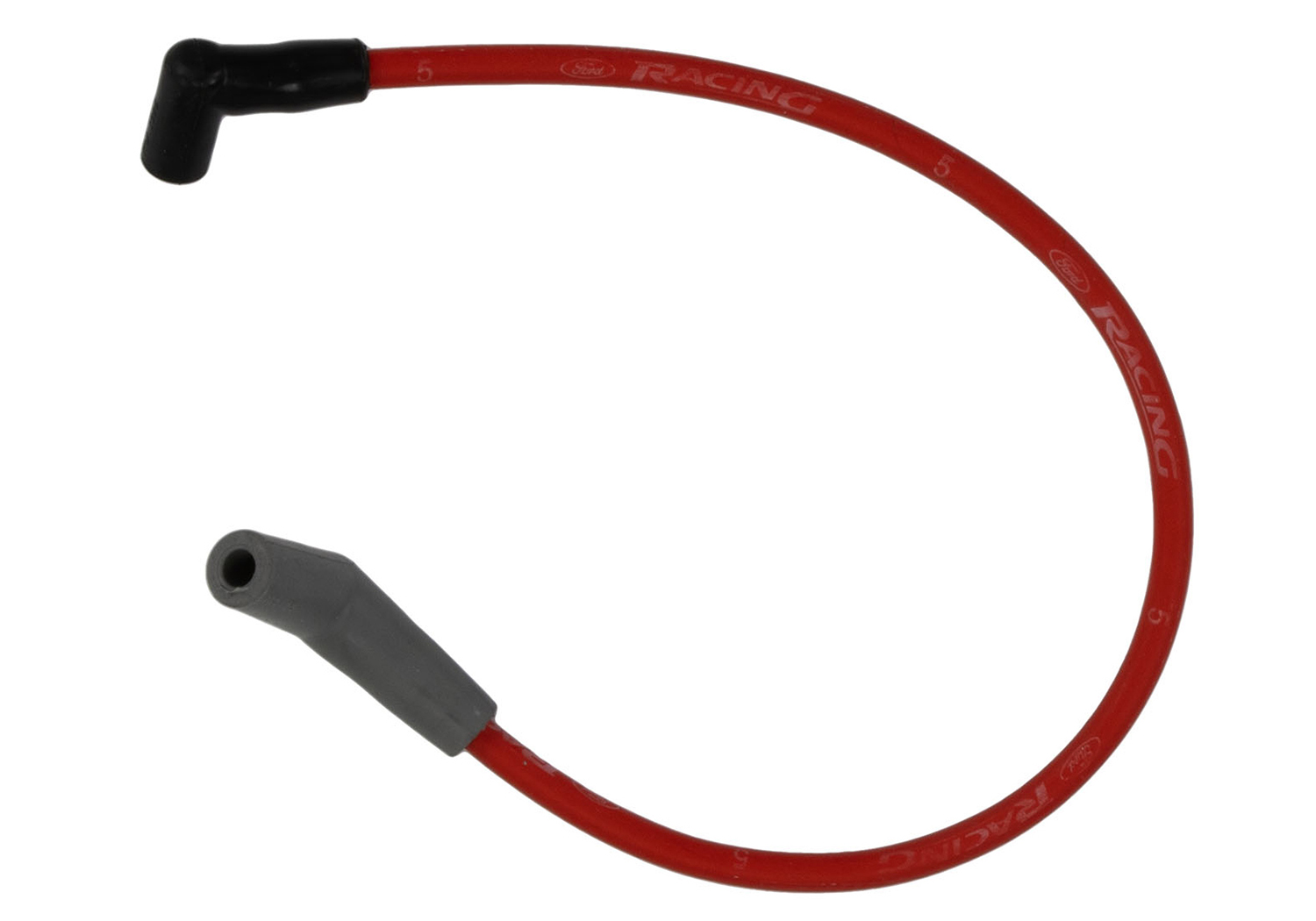

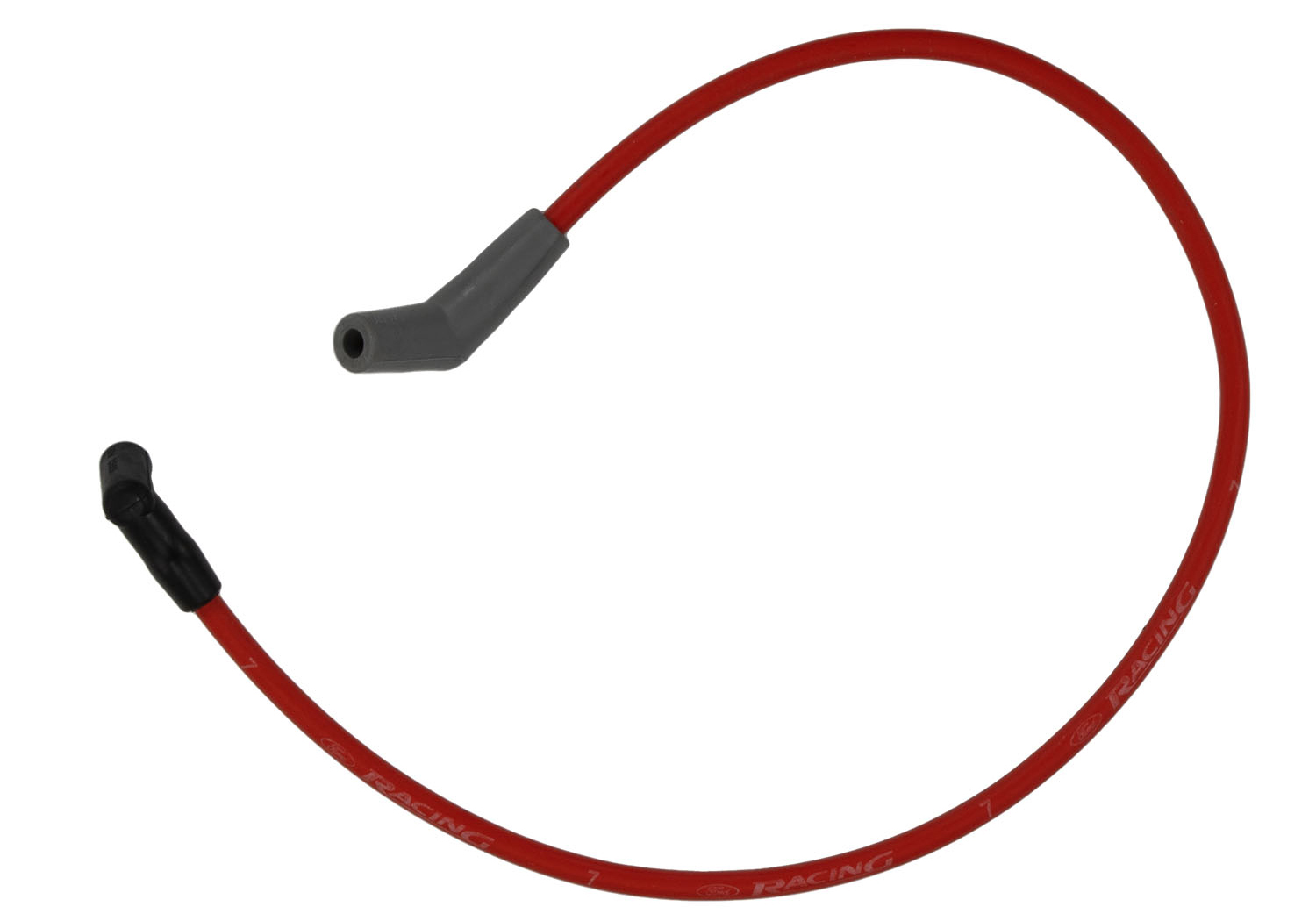

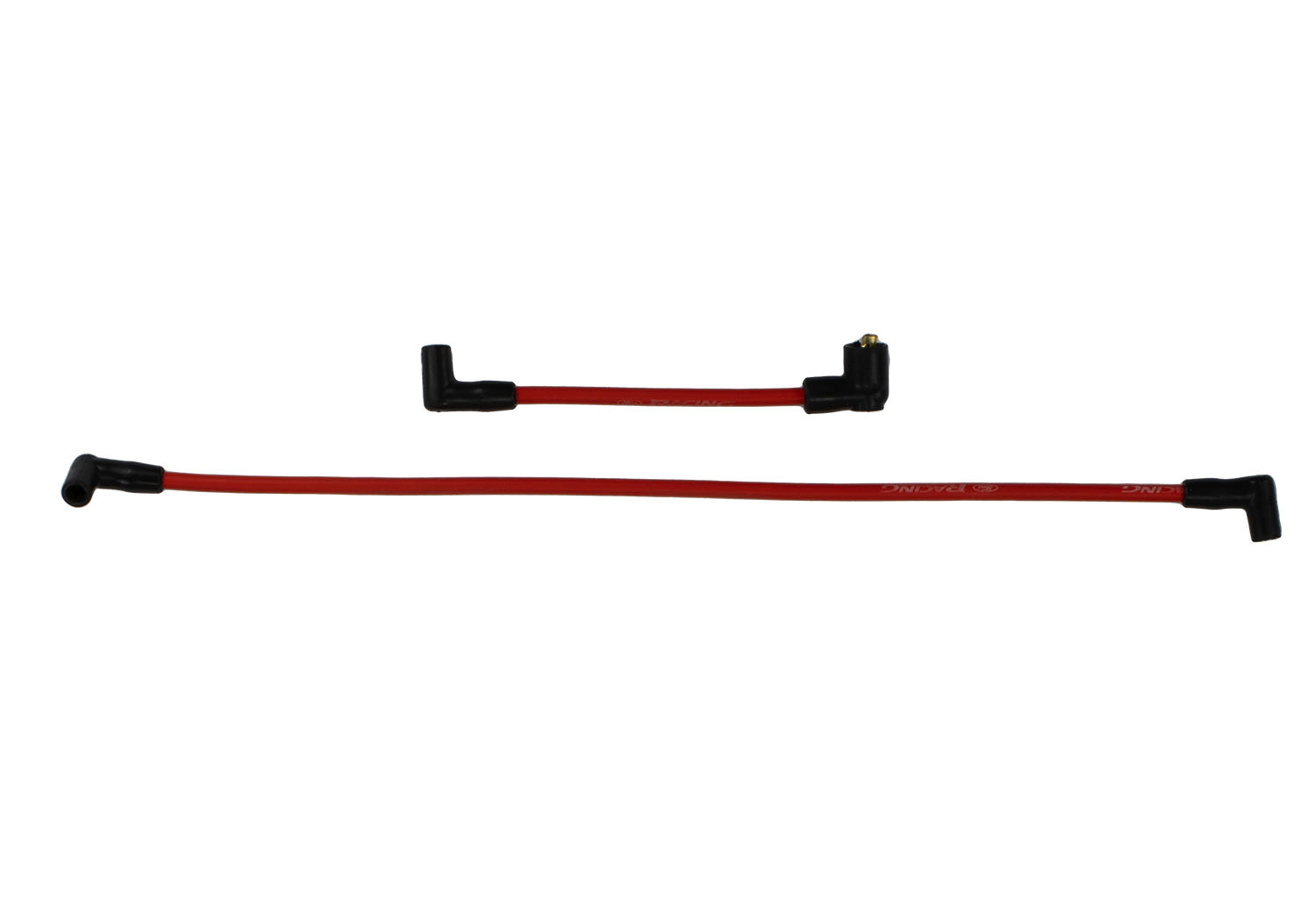

    Wire-wound custom 9MM ignition wire sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for “post” type distributor caps. Includes coil wire for socket-type coil and “Ford Racing” identification. Cylinder number appears on each wire and is available in 4 colors: blue, black, yellow and red.


    PART NUMBER APPLICATION WIRE COLOR END CONFIG.
    M-12259-C301** 5.0/5.8L V-8 Engine Blue 45° Boot
    M-12259-R301** 5.0/5.8L V-8 Engine Red 45° Boot
    M-12259-M301** 5.0/5.8L V-8 Engine Black 45° Boot
    M-12259-Y301** 5.0/5.8L V-8 Engine Yellow 45° Boot
    M-12259-C460** 7.0/7.5L V-8 Engine Blue 45° Boot
    M-12259-R460** 7.0/7.5L V-8 Engine Red 45° Boot
    M-12259-C302** V-6 & V-8 Universal Blue 45° Boot
    M-12259-M302** V-6 & V-8 Universal Black 45° Boot
    M-12259-C462** 4.6L 2V Mustang Blue 45° Long Boot
    M-12259-R462** 4.6L 2V Mustang Red 45° Long Boot
    M-12259-C464** 4.6L 4V Mustang Blue 45° Long Boot
    M-12259-R464** 4.6L 4V Mustang Red 45° Long Boot
    M-12259-T462** 4.6L 2V F-150 Truck Blue 45° Long Boot
    NOTES: Universal sets can be cut to length and assembled with a crimping tool. Includes terminals for post and socket type coils, plus easy to follow instructions.
    Wire sets M-12259-C301/R301/M301/Y301/C302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal wire sets do not fit distributorless ignition system (DIS).
Part Type
Electrical: Ignition Related
Warranty Availability
Not Available
Package Dimensions
7.75" x 3.25" x 9"
Package Weight
2.4 lb(s)
UPC Code
756122122365
Country of Origin
Mexico
