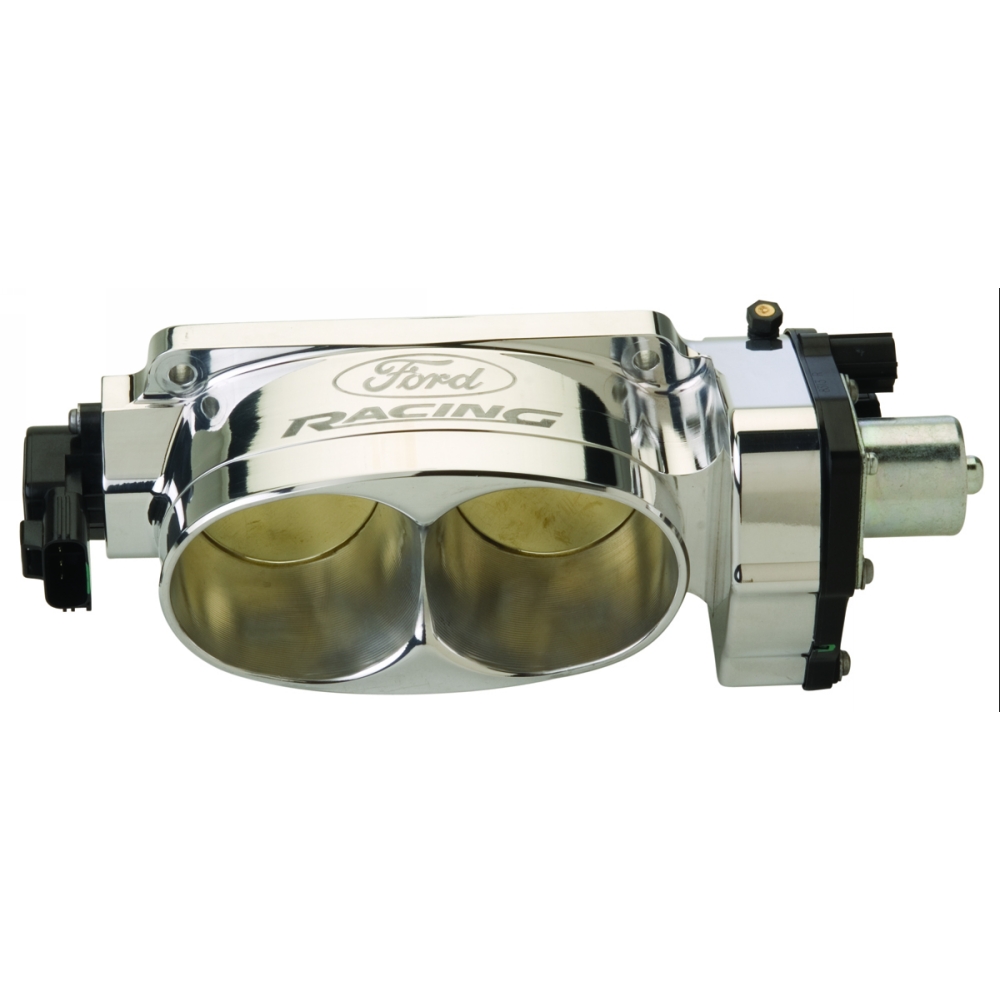

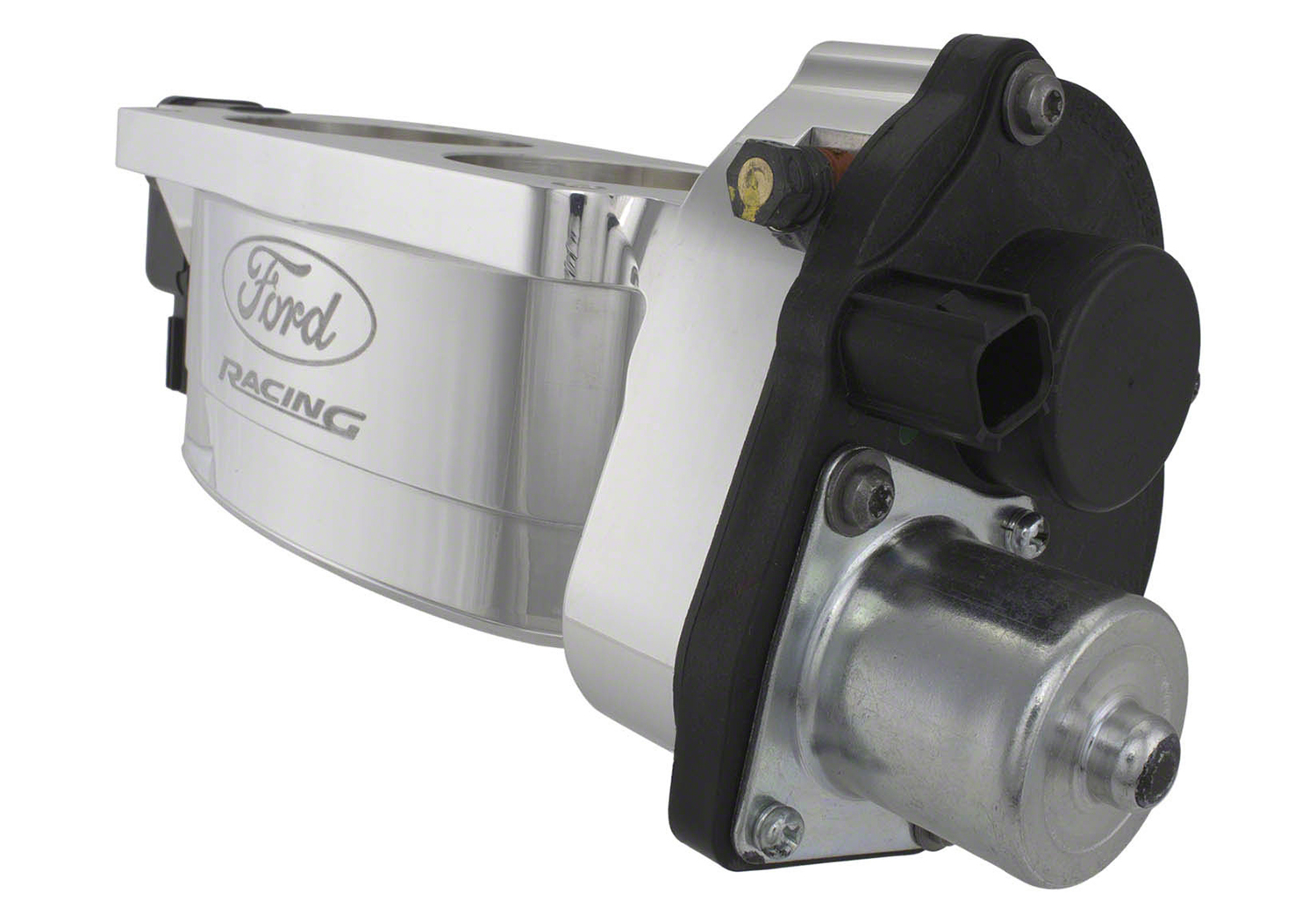

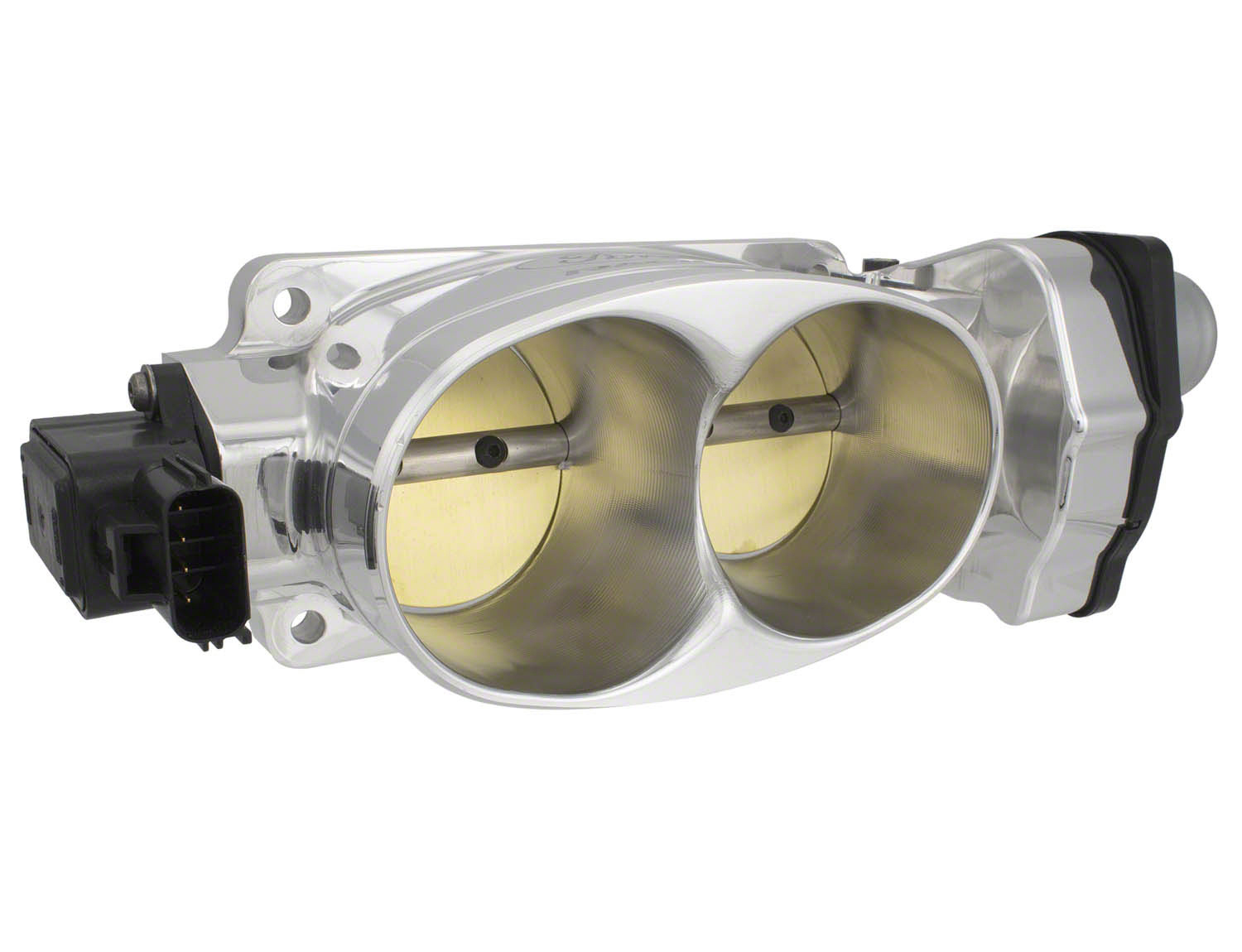

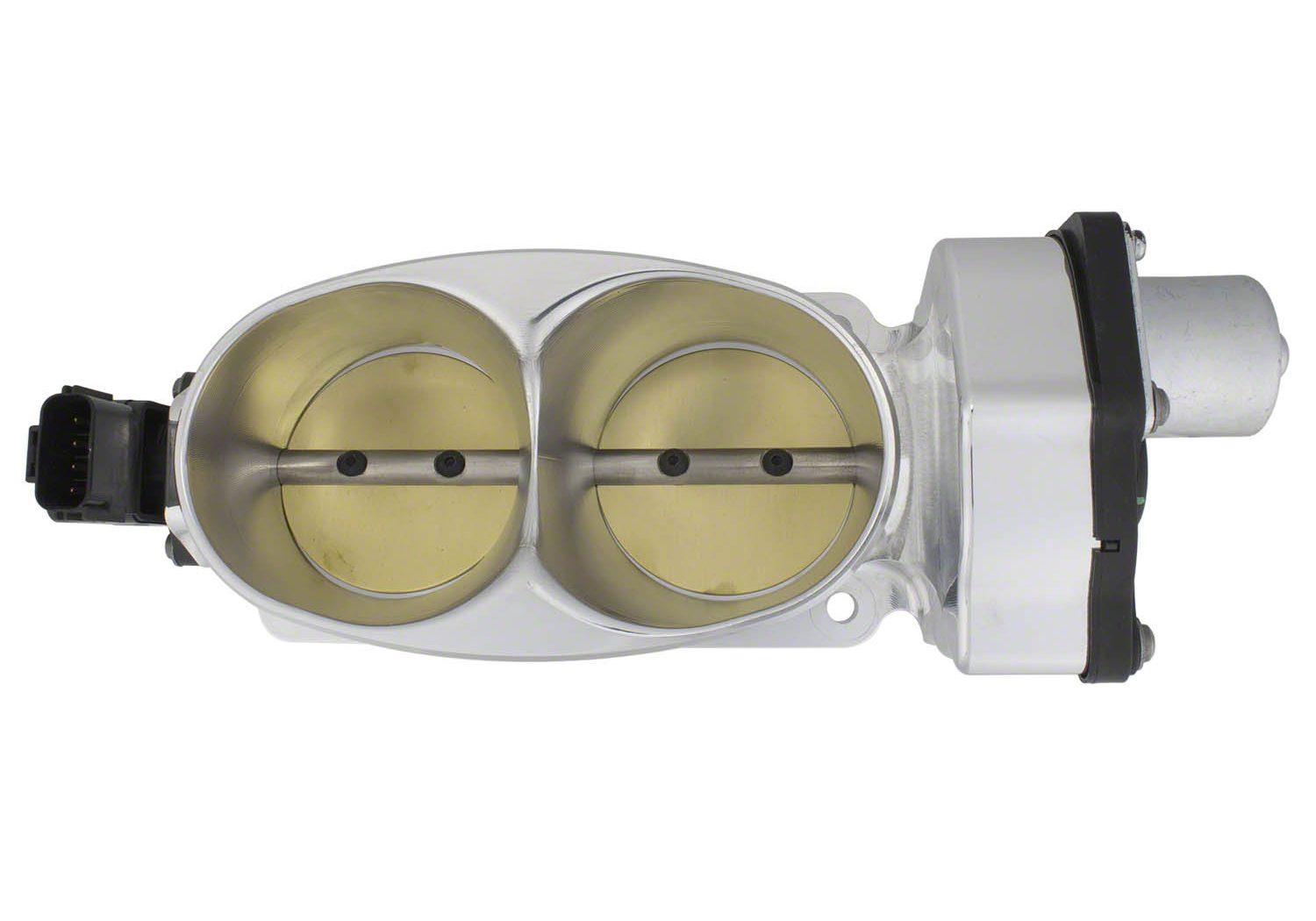

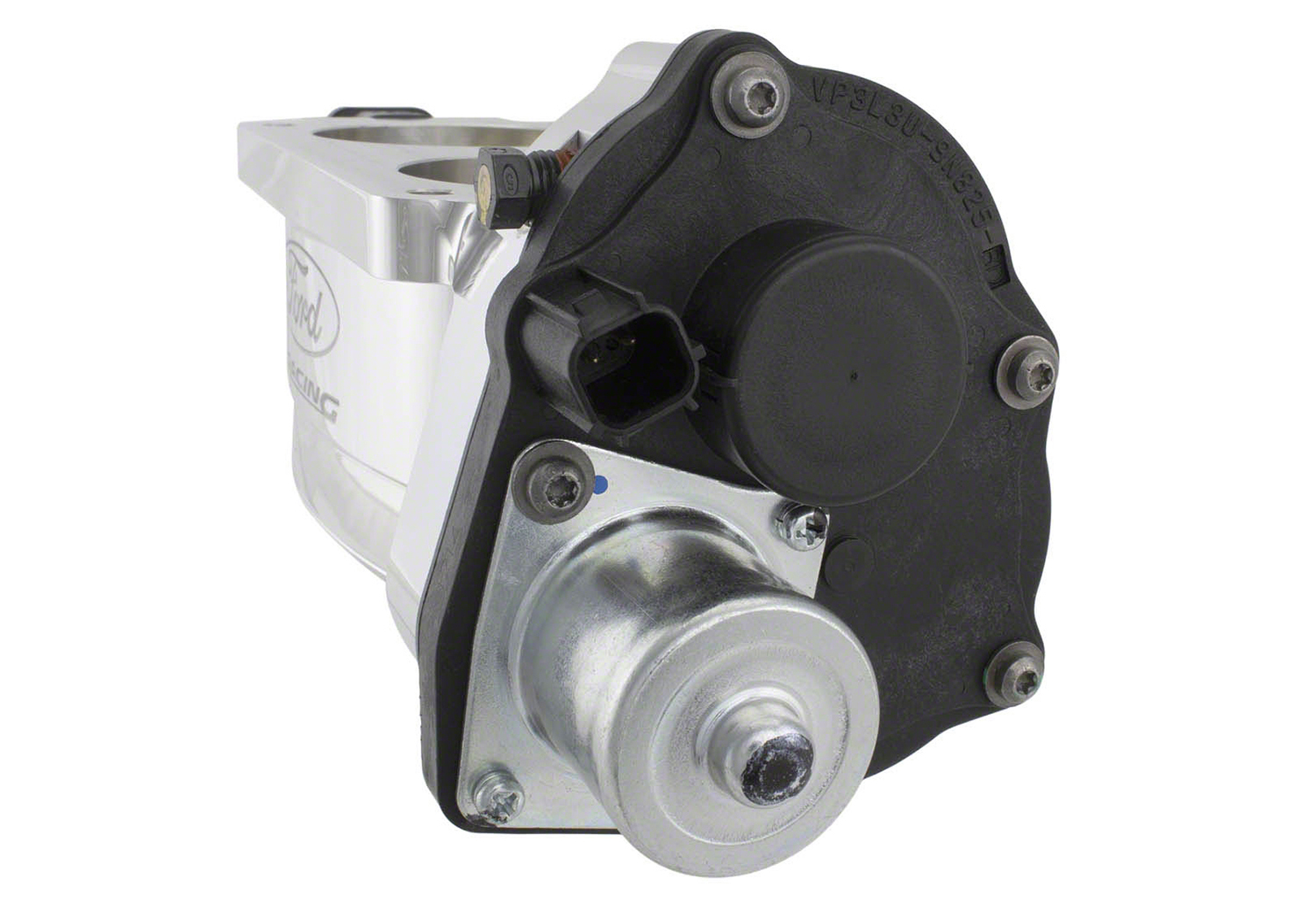

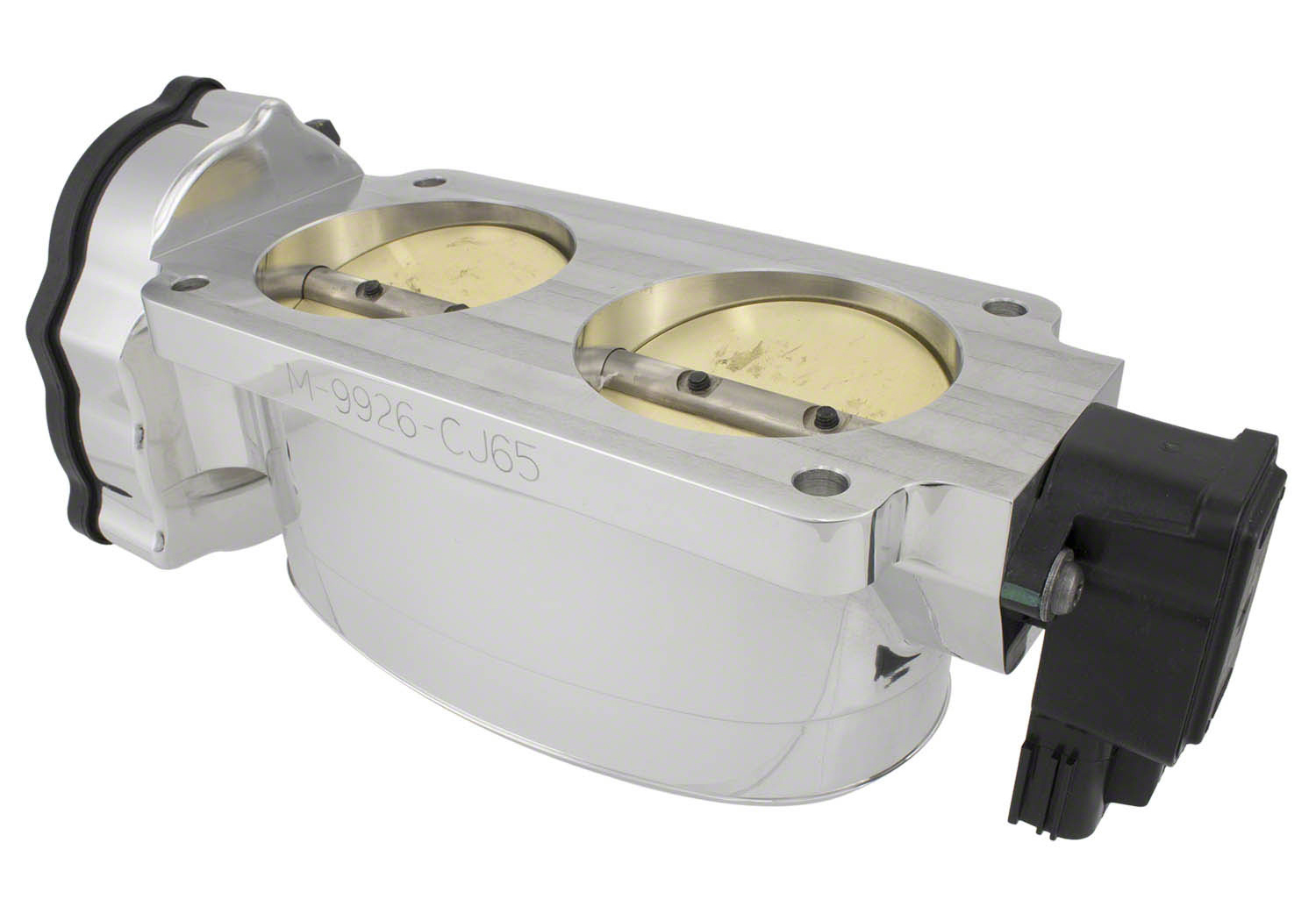

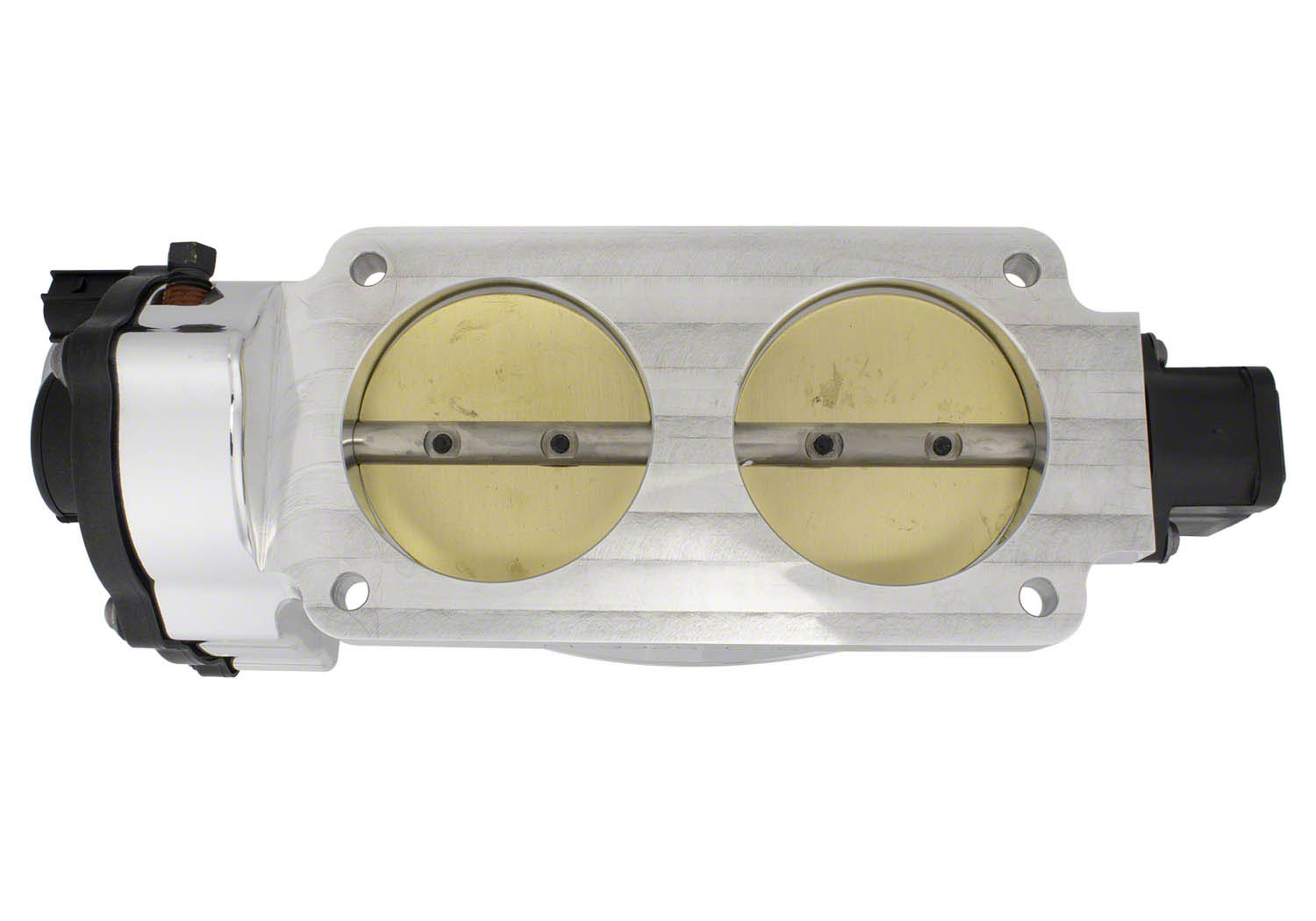

65MM COBRA JET BILLET ALUMINUM THROTTLE BODY

65MM COBRA JET BILLET ALUMINUM THROTTLE BODY
M-9926-CJ65
Retail
$775.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
  • Fits in factory location on 2007-2014  Mustang Shelby GT500
  • Fits 2011-2014 Mustang GT with Ford Racing supercharger kit M-6066-MGT624D. (Calibration required)
  • Fits 5.0L Cobra Jet Intake Manifold M-9424-M50CJ
  • Dual 65mm bore (stock SVT Mustang is dual 60mm bore)
  • CFM Rating: 1517cfm.*
  • Precision machined from billet aluminum to ensure consistency
  • Polished finish with CNC'd Ford Racing logo
  • Fully assembled, complete with throttle position sensor and actuator motor, ready to bolt on!
  • Uses OE gears to prevent gear bind and wear common with other aftermarket throttle bodies
  • Does not include calibration, calibration required.

All Ford Racing ETC throttle bodies feature:

  • All factory sensors installed - no need to tear apart your original throttle body
  • Calibrated for idle air flow using the same procedure as production throttle bodies
  • Precision billet construction with tapered inlet for consistent high flow
  • Polished aluminum for great looks and underhood "bling"
  • The only throttle bodies backed by Ford Racing with the logo CNC'd in
  • Validation through hundreds of hours of dyno, racing, and street performance driving

*All cfm ratings are calibrated at 28-inches of water, measured on SuperFlow SF-1020 Flow Bench.


Part Type
Engine: Intake Related
Warranty Availability
Not Available
Package Dimensions
6.5" x 4.5" x 12.5"
Package Weight
4.6 lb(s)
UPC Code
756122116883
Country of Origin
United States
