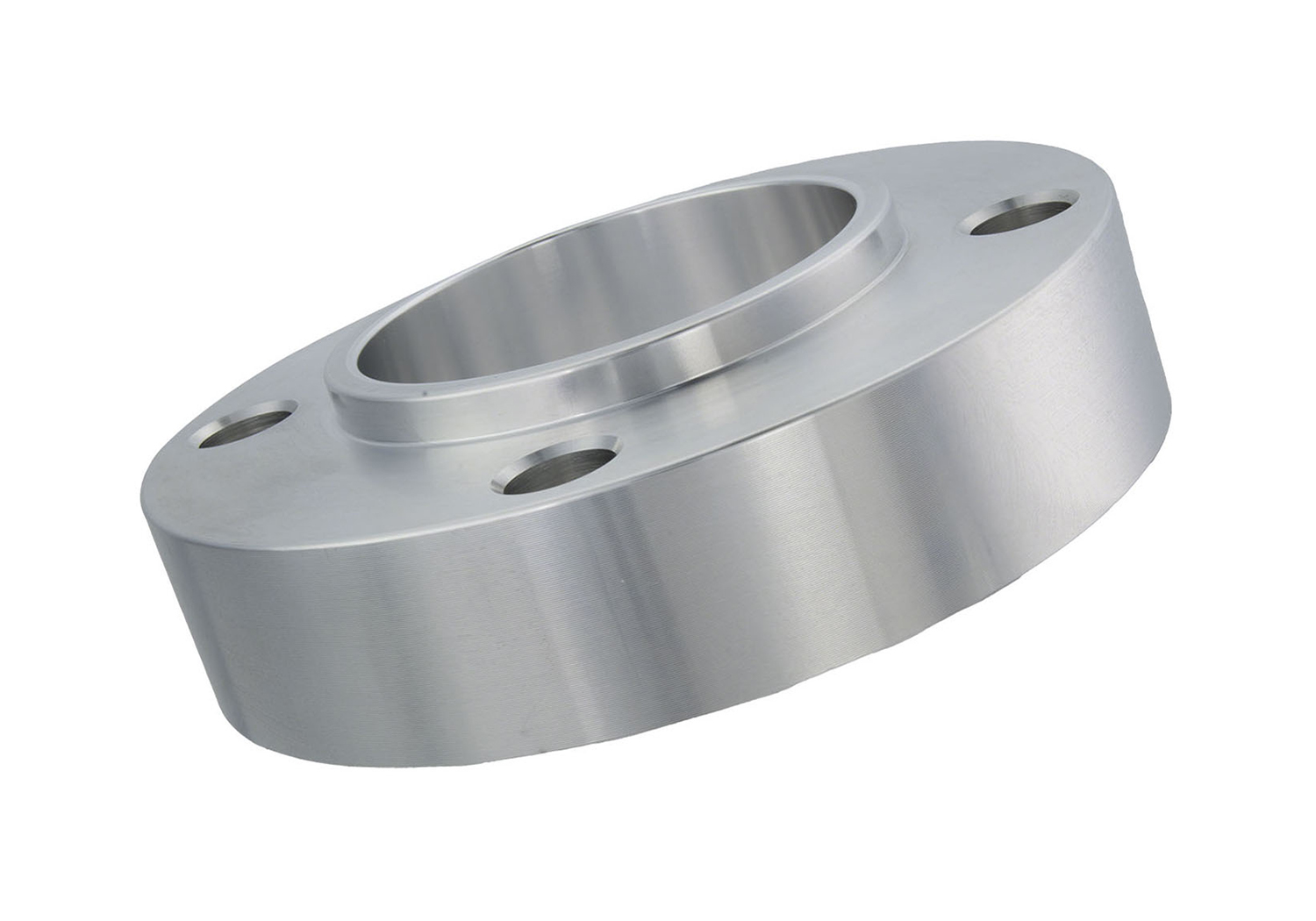

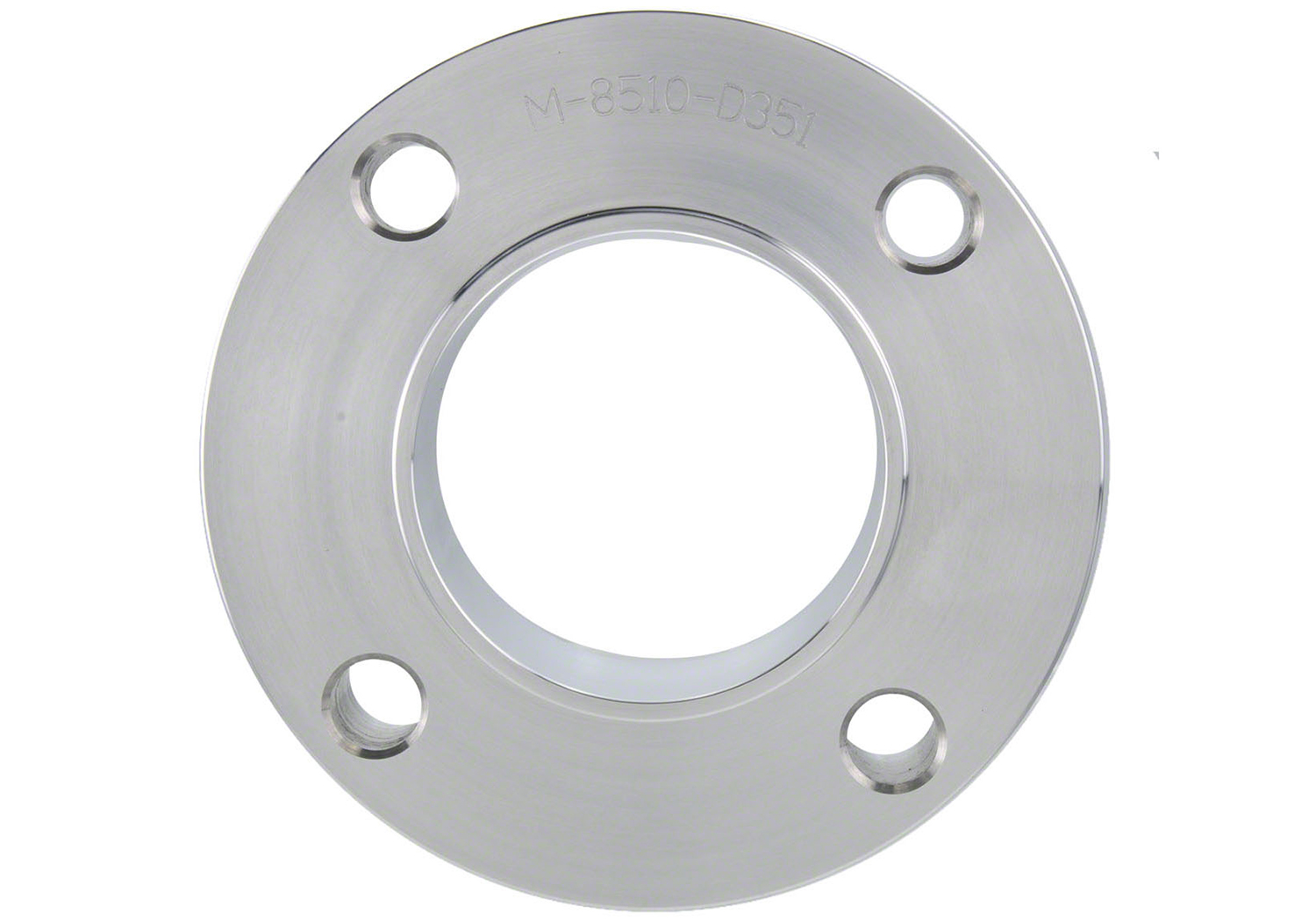

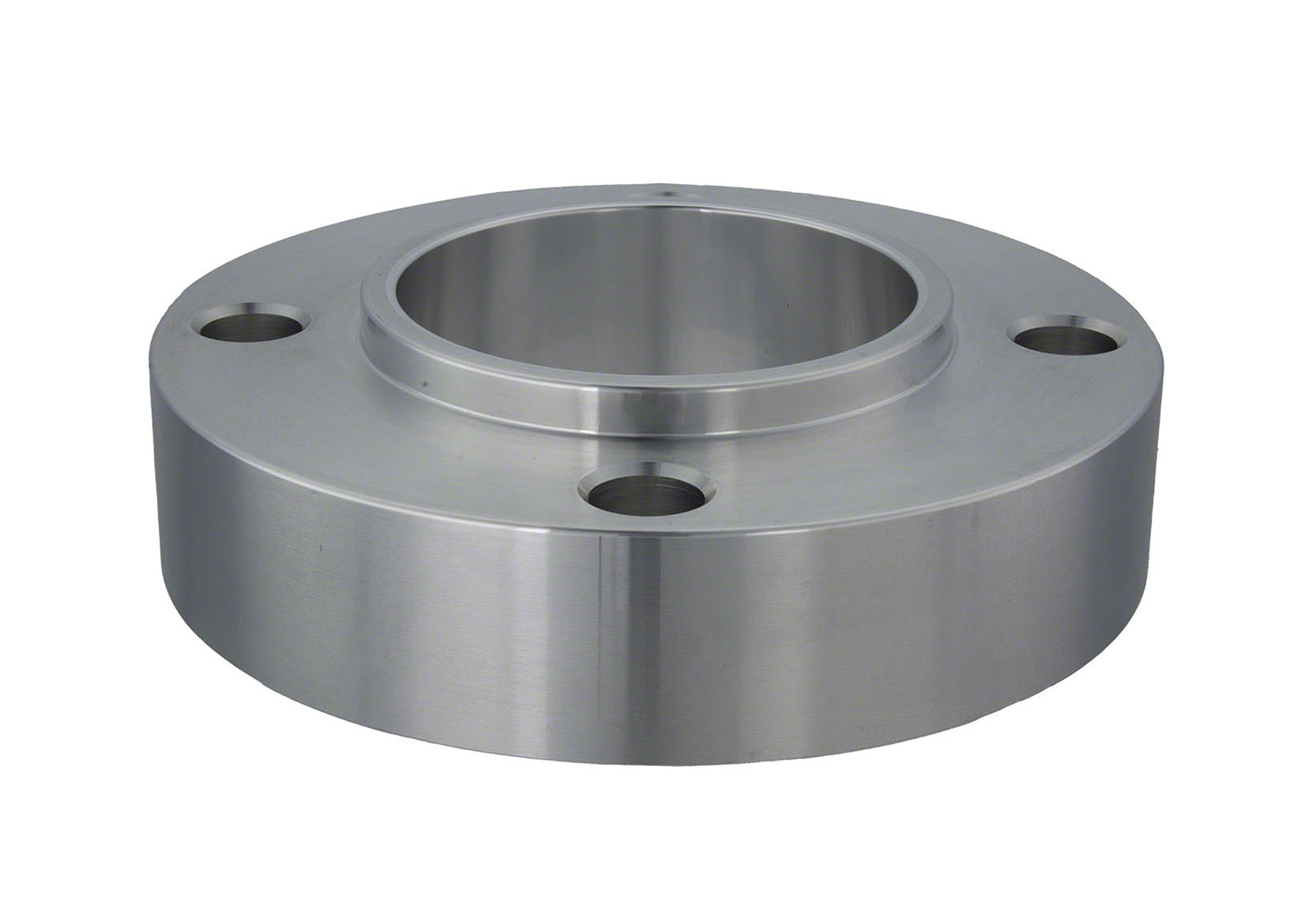

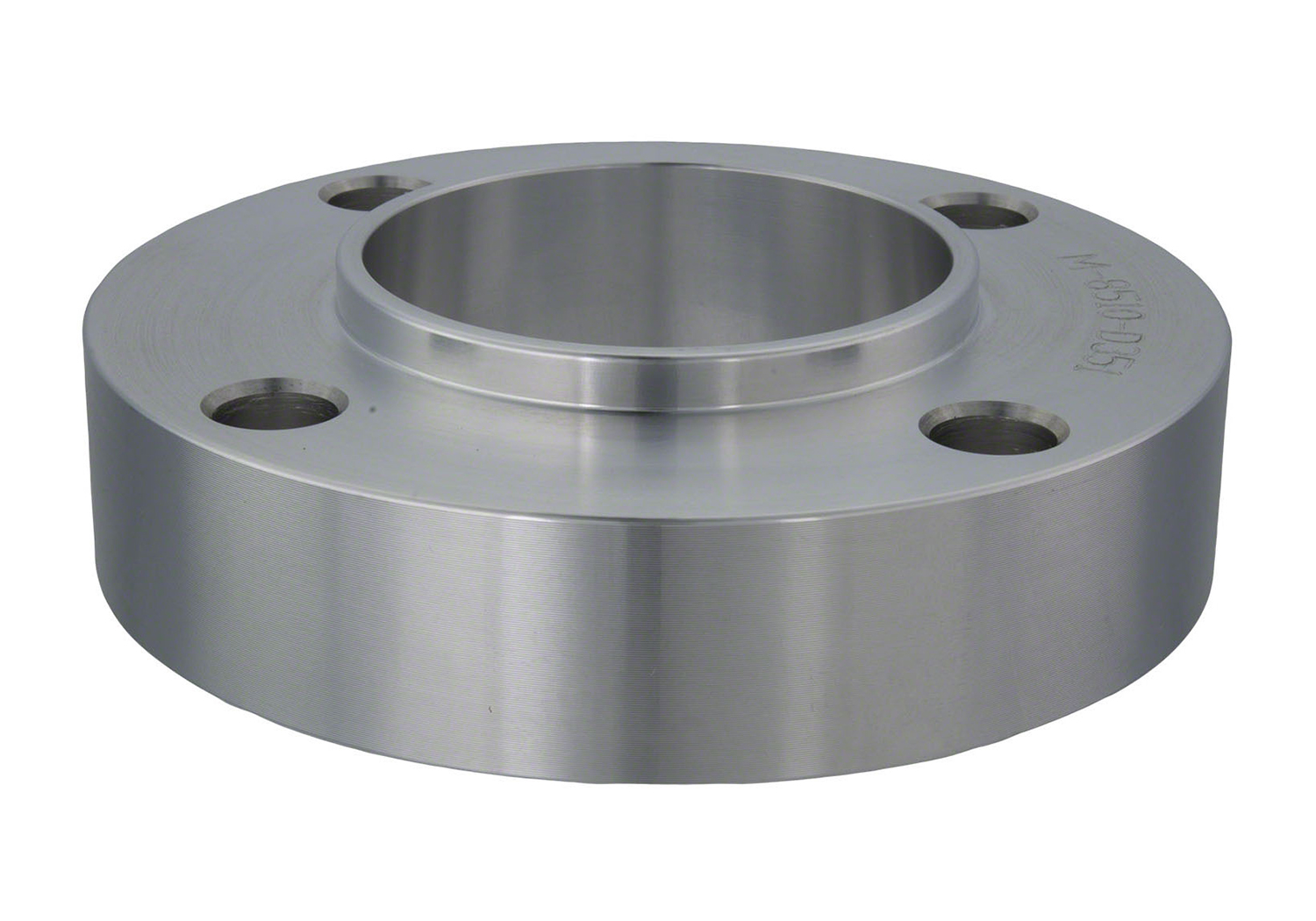

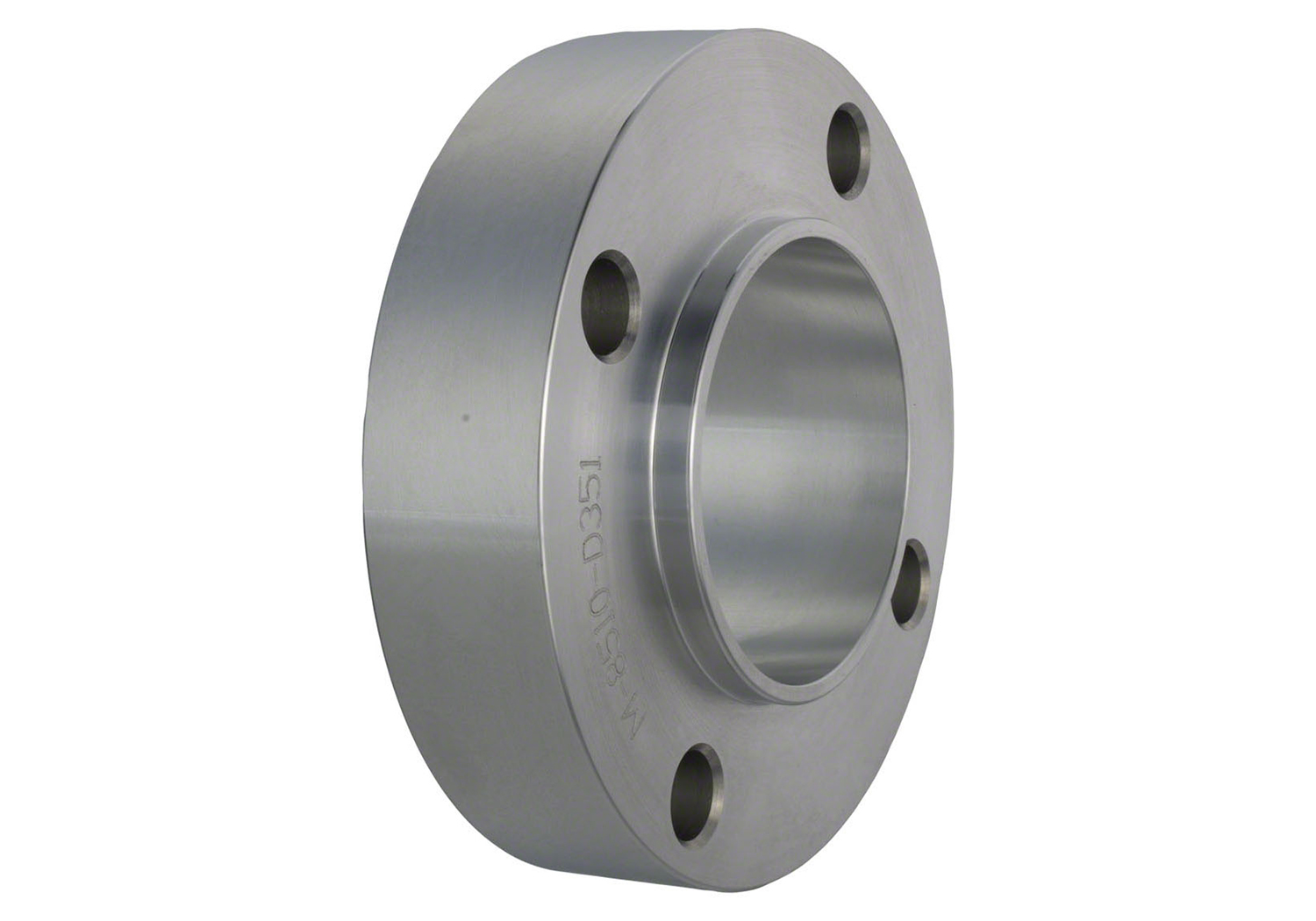

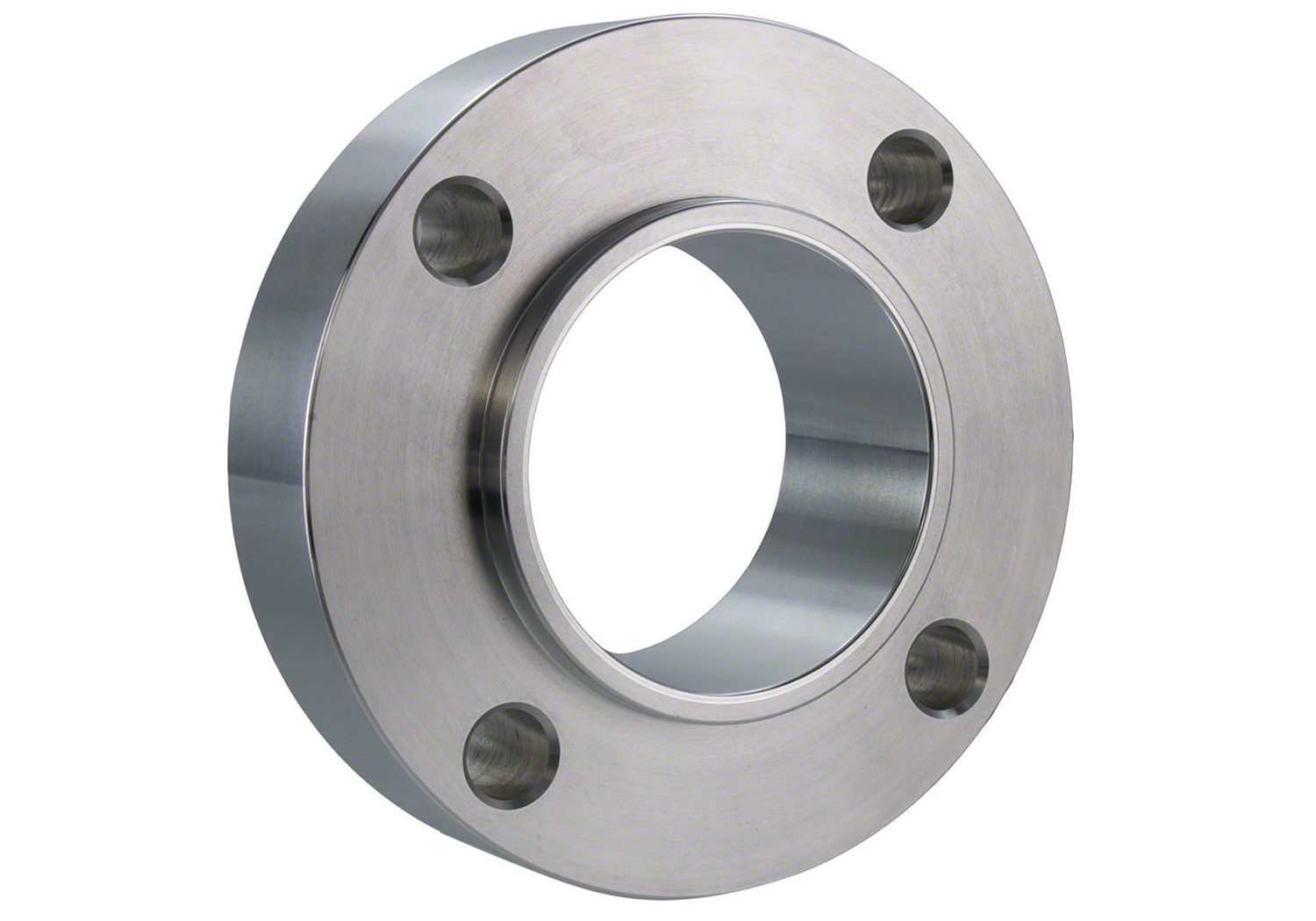

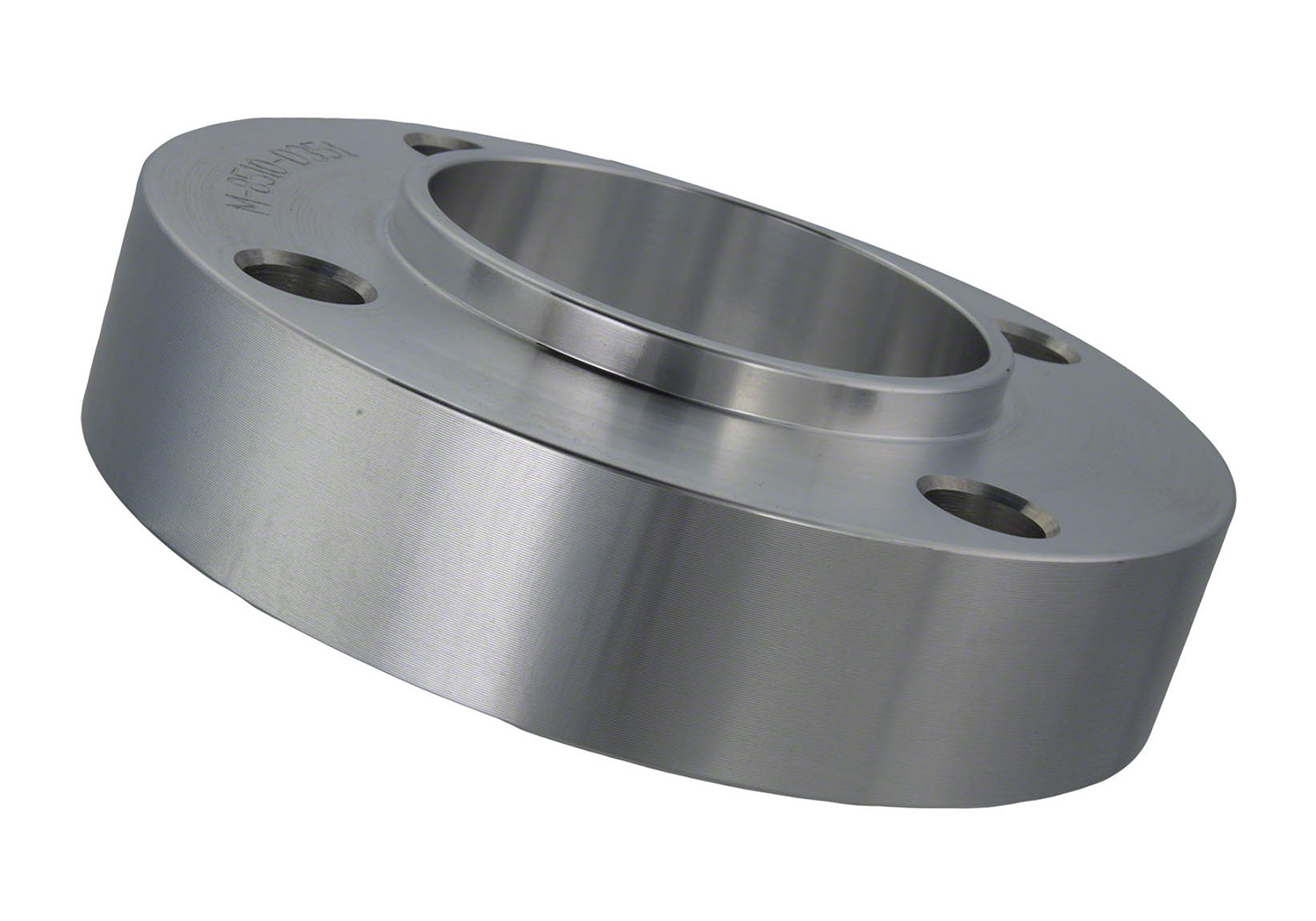

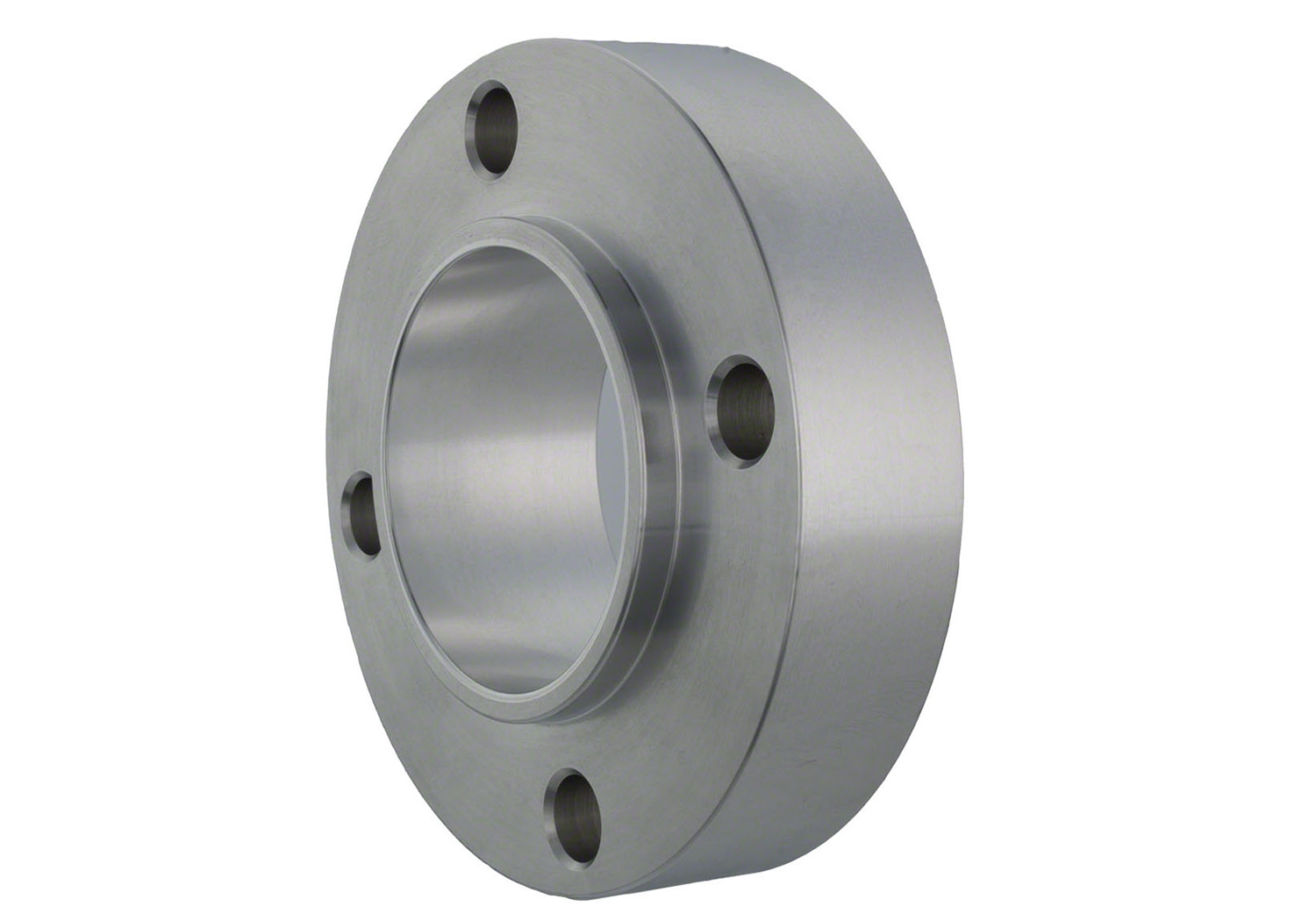

302/351W CRANKSHAFT PULLEY SPACER - 0.909"

302/351W CRANKSHAFT PULLEY SPACER - 0.909"
M-8510-D351
Sold in Units of
Each (1)
Instruction Sheet
Not Available
Sign in to add to wish list
    Use the following chart to select the proper crankshaft pulley spacer to use with Ford Performance M-6316-C351/A50/D302 crank dampers to achieve proper belt alignment on late model 302 and 351 Windsor engines:
    PART NUMBER     ENGINE   CRANK PULLEY BOLT PATTERN   SPACER THICKNESS
M-8510-A351          302/351W                            4                                            0.350"
M-8510-B351          302/351W                            4                                            0.950"
M-8510-C351          302/351W                            4                                            0.875"
M-8510-D351          302/351W                            4                                            0.909"

    Note: Early 3-bolt crank pulleys generally bolt directly to the damper with flanged pulley pilot (damper is drilled for 3- and 4-bolt patterns). Pulley alignment should be checked and any misalignment corrected with the proper thickness spacer.
Part Type
Engine: Cooling
Warranty Availability
Not Available
Package Dimensions
5.75" x 8" x 2.25"
Package Weight
0.9 lb(s)
UPC Code
756122113868
Country of Origin
United States
